At a glance
- This heavy duty trailer is suits to machinery up to 19.5T
- This trailer can only be towed with a minimum HC licence
- A heavy duty trailer, the Ultimate Plant Trailer, with BPW rear self-steer axle
- Built with a custom chassis, 8mm GR350 web plate and 100mm x 20mm GR350 bottom strap
- Designed with heavy duty ramps with 250mm x 150mm x 6mm beams
Tare range
Specification specific
- 6,800kg up to 8,100kg
Standard features
- 5mm checker plate floor, or option of hardox
- 10mm GR350 coaming
- 100mm x 50mm x 4mm RHS cross members
- Heavy duty hydraulic power pack with toolbox built in deck for protection
- In-deck biss alloy chain point
- Custom built drawbar to suit truck hitch height
- BPW airbag suspension
- Wabco EBS raise/lower function incorporating digital return to ride height
- Refer to our Ultimate Plant Trailer options booklet
Capacity
- Up to 19,500kg

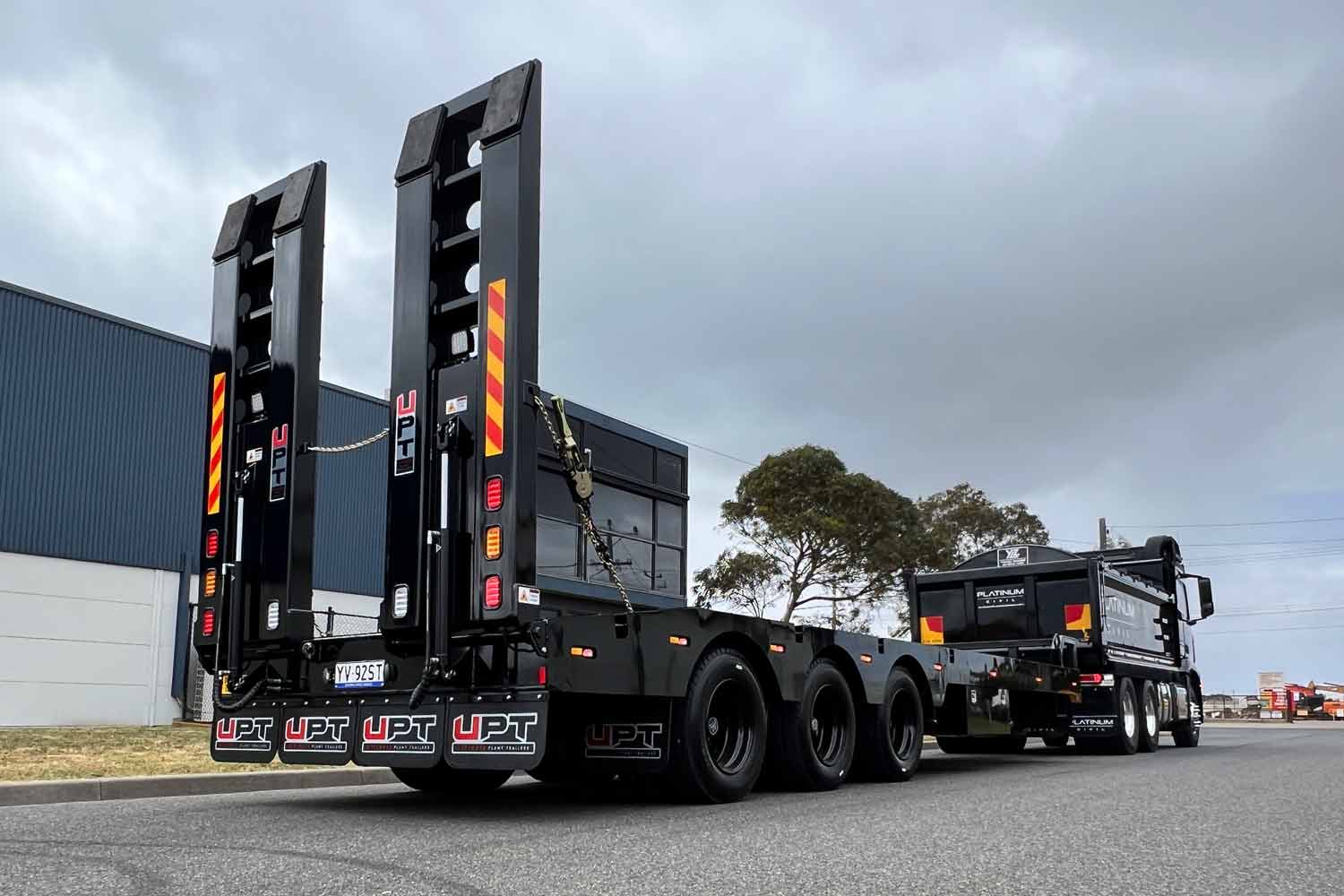

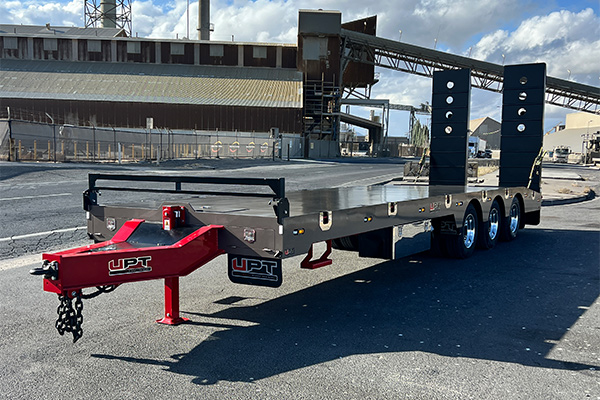

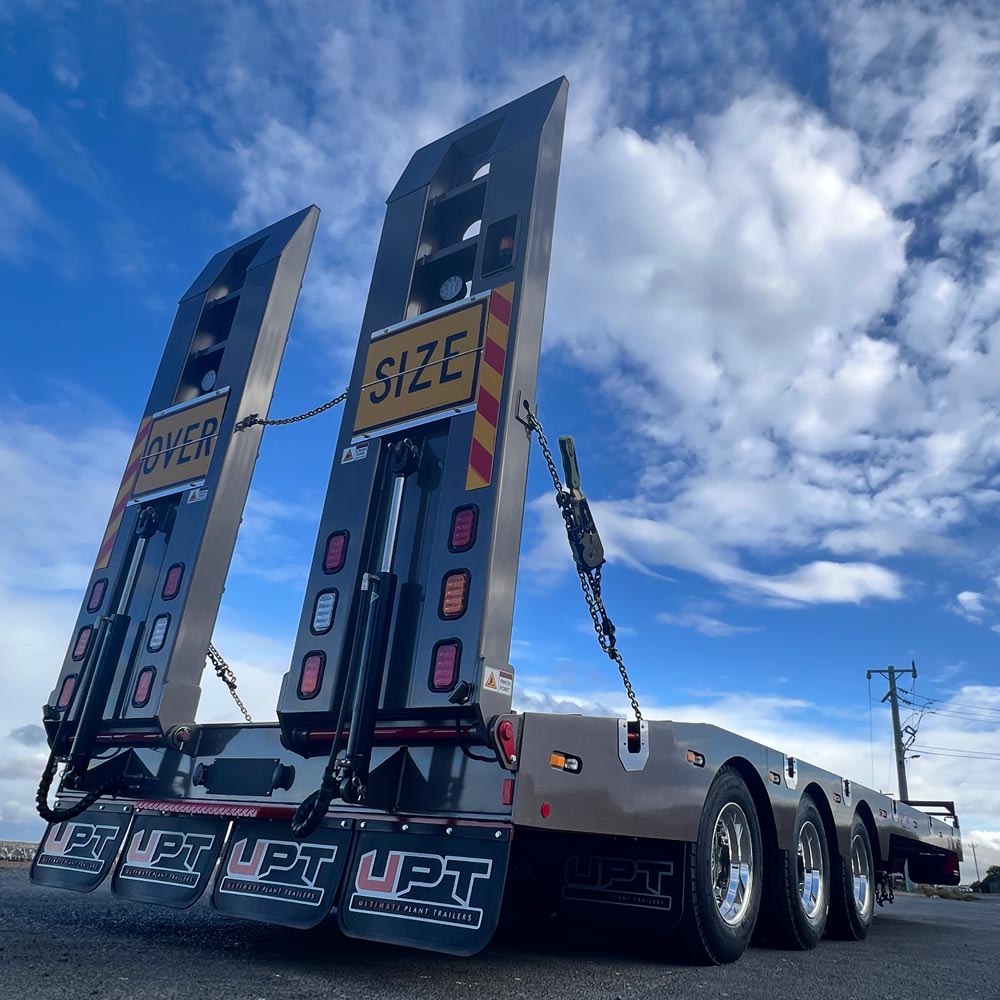

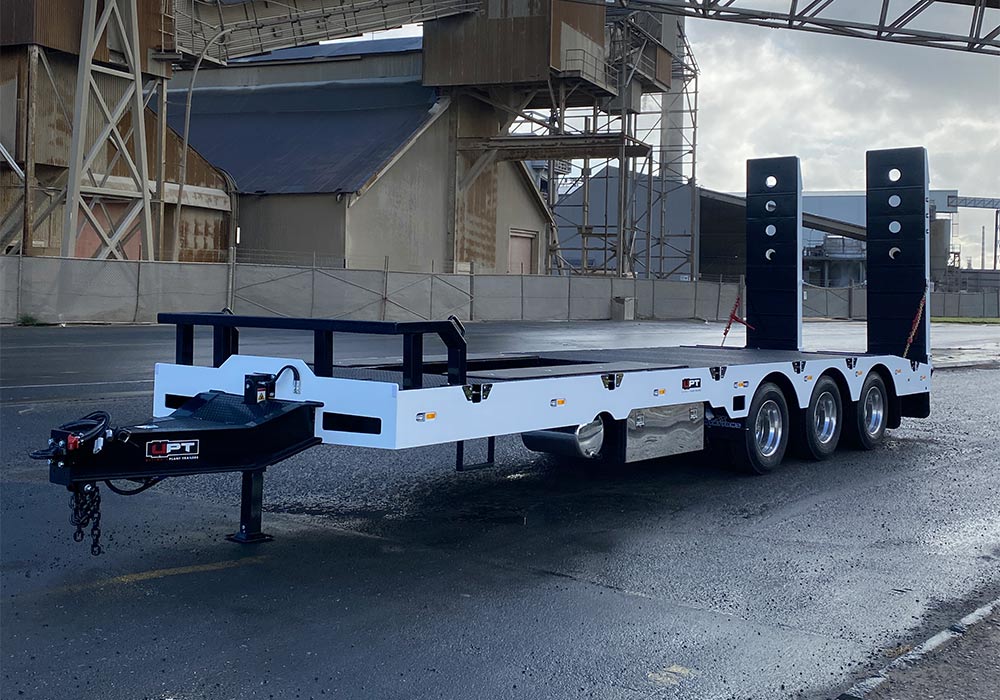

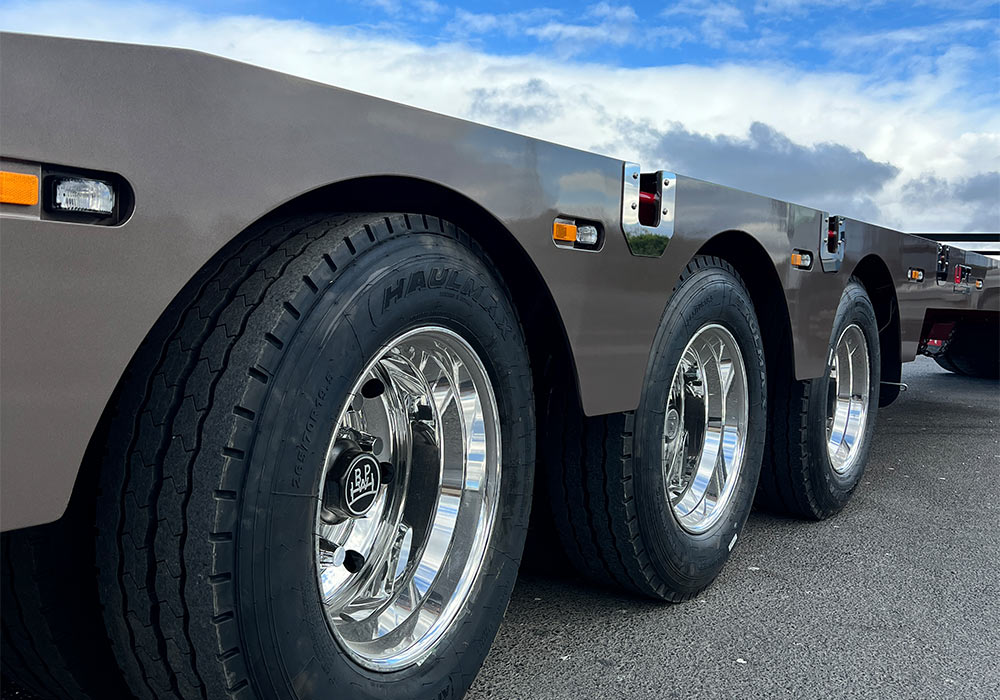

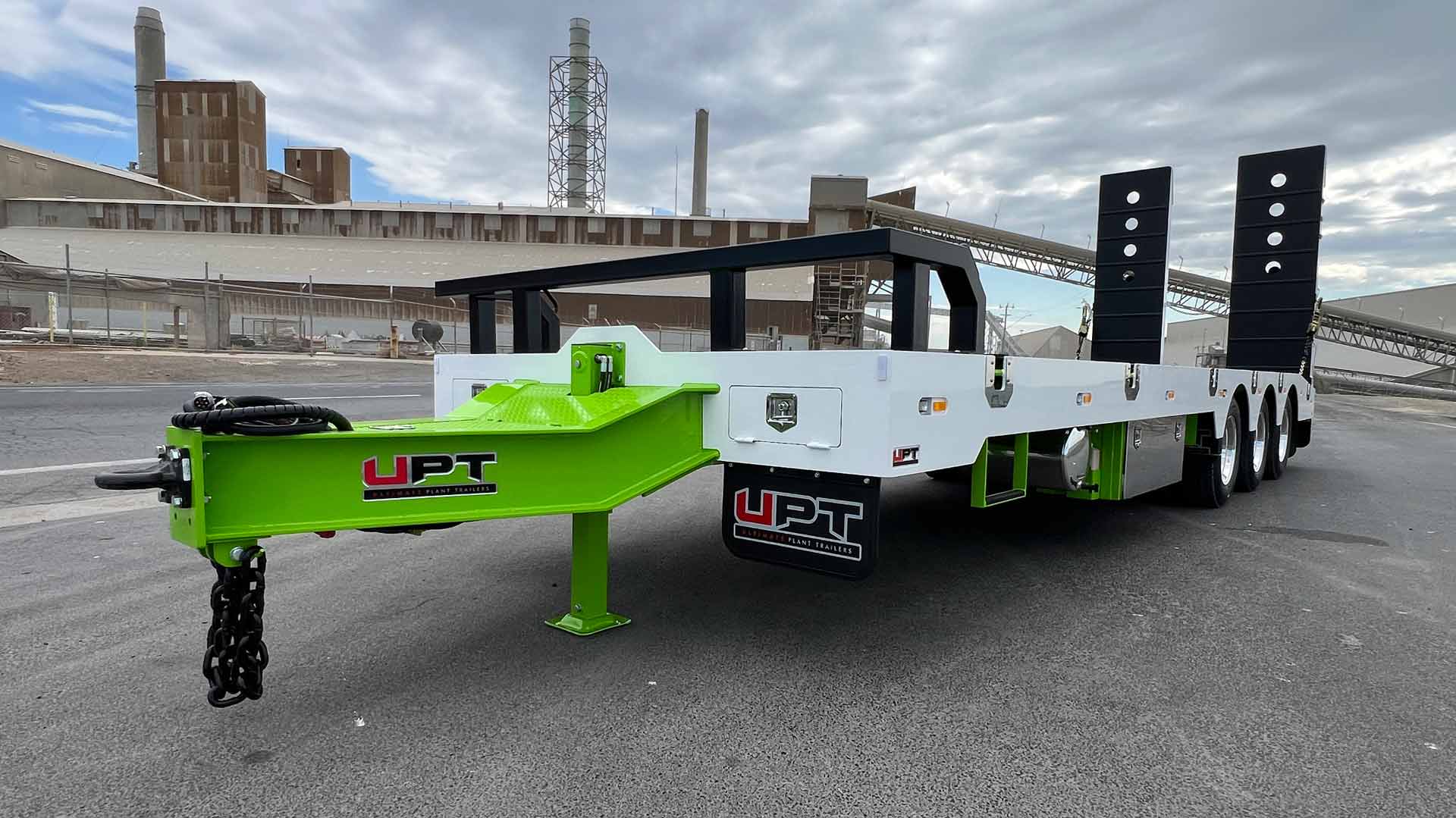

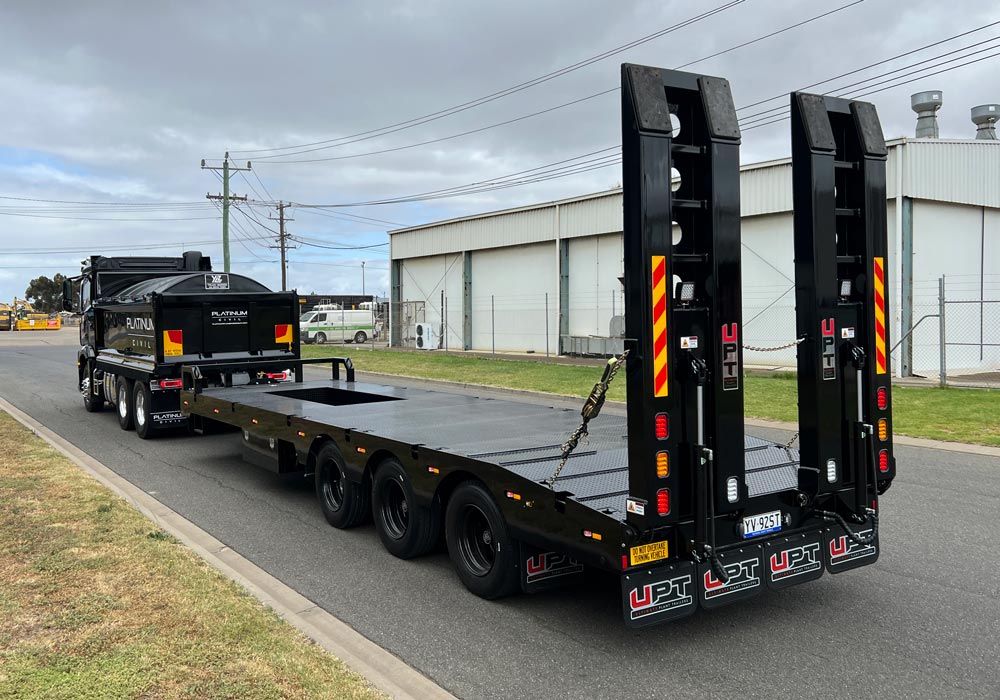

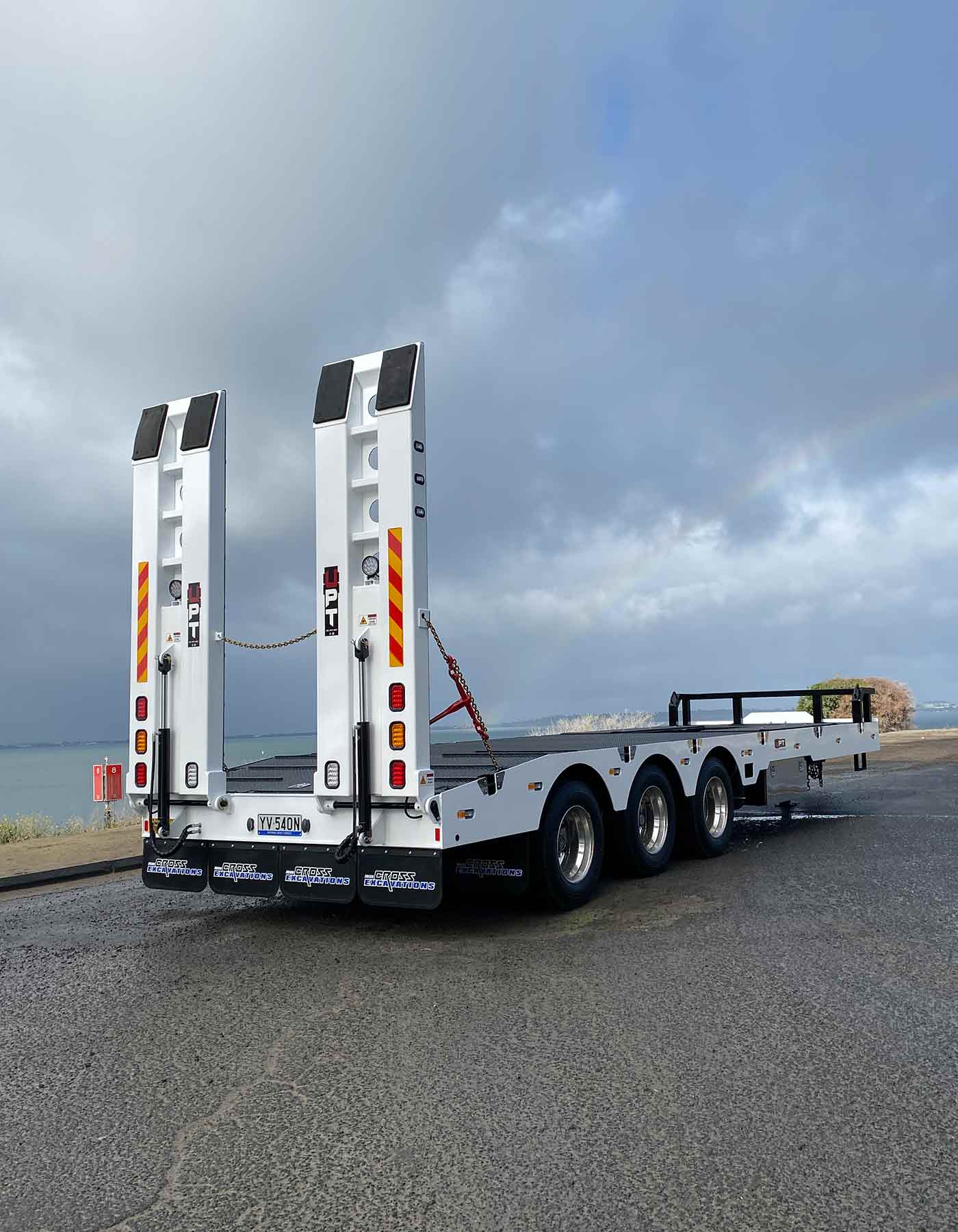

Tri Axle Trailers 30T BPW Rear Steer – Custom Builders
Our 30T tri axle trailers with BPW rear steer are engineered for operators who need greater control and manoeuvrability when transporting heavy plant and machinery.
As specialist tri axle trailer builders, we fabricate each 30T BPW rear steer trailer using Australian steel and CAD design. Our tri axle trailer fabricators can customise every detail, from ramps to wells, ensuring performance and reliability on every job.
Backed by a 3-year workmanship warranty, every 30T tri axle trailer is built to last.
Ready to start your custom build? Contact us today.
Optional tri axle trailer extras
- Air bag suspension
- Storage solutions
- Over-size sign and flag kit
- Extra-wide, extra-long ramps
- Container pins
- Diesel fuel systems
- Alloy ramp slides
- In-deck well
- Auger racks.
Not exactly what you had in mind?
Our BPW rear steer tri axle trailers give you control on tight sites. If you’re after simpler builds, see our Tri Axle Trailers 30T ATM, or for alternative setups try our Gooseneck Heavy Duty 16T.
Tri Axle 30T ATM BPW Rear Steer trailers for sale
Innovation, safety and durability in every trailer
Request a quote
